Description

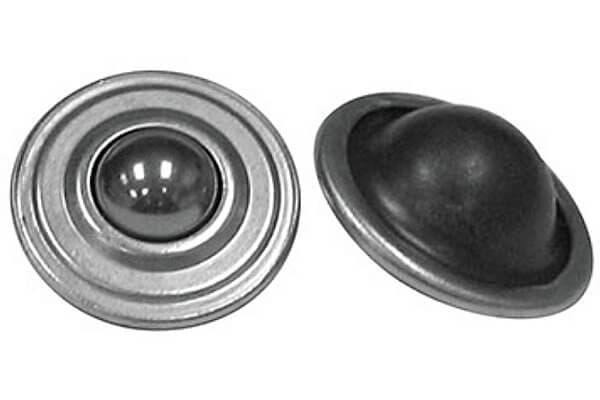

5/8″ DMC & DMS

This is a low profile unit and is easily installed. It can be utilized ball up or down. Bolt down cover is available for stability. Disk-mount ball – the easiest installation just by dropping these units into your application, can be used with or without the bolt down covers.

*5/8 DMC- No nylon seal

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
5/8 DMCCarbon SteelCarbon Steel (zinc plated)40 lbs.
5/8 NDMCNylonCarbon Steel (zinc plated)40 lbs.
5/8 DMSStainless SteelStainless Steel75 lbs.
5/8 NDMSNylonStainless Steel40 lbs.
DMC & DMS Disk Mount Ball Transfer Units

DMC & DMS

This low profile ball unit has a nylon wiper seal and is easy to install. The unit can be utilized ball up or ball down. Heavy duty bolt down cover is also available.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
DMCCarbon SteelCarbon Steel (zinc plated)75 lbs.
NDMCNylonCarbon Steel (zinc plated)75 lbs.
DMSStainless SteelStainless Steel125 lbs.
NDMSNylonStainless Steel75 lbs.

5/8 DMC- No nylon seal

5/8" DMC & DMS Cover

5/8″ DMC & DMS Cover

The DMC bolt down cover allows the ball transfer unit to stay in place when uneven material is pulled across.

View Product Diagram

Part #Material
55269Carbon Steel
55269SStainless Steel
DMC & DMS Cover

DMC & DMS Cover

The DMC bolt down cover allows the ball transfer unit to stay in place when uneven material is pulled across.

View Product Diagram

Part #Material
55270Carbon Steel
55270SStainless Steel
