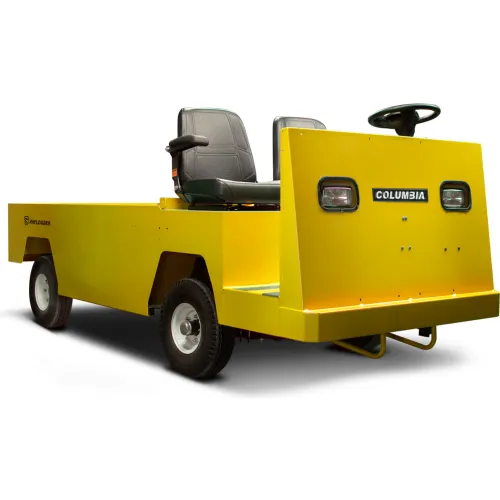

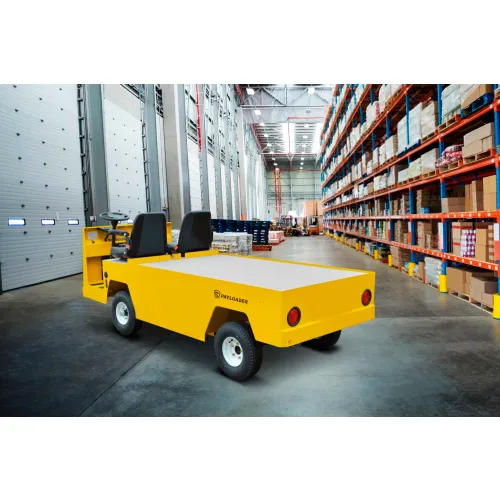

COLUMBIA Payloader HD Y1-01-78

The Payloader HD Y1-01-78 can carry up to 3,200 pounds, tow up to 10,000 pounds and travel up to 13 mph while offering exceptional maneuverability and access to places that larger burden carriers don’t allow. The Payloader is designed for durability and dependability. Comes with Dual Recessed Headlights

Weights & Dimensions

Length121 in
Width47 in
Height47-1/2 in
Weight Capacity3200 lbs
Weight1720 lbs
Cargo Deck/Load Bed Weight Capacity3050 lbs
Wheel Base65 in
Ground Clearance4.3 in
Vehicle Load Weight Capacity3200 lbs
Cargo Deck Width45 in
Gauge12
Cargo Deck Length76 in
Travel Speed13 mph
Towing Capacity10,000 lbs

Product Details

Assembly RequiredNo
Cargo Deck MaterialMezz-Tread® Durable Industrial Deck
Motor/Engine Type24V DC, NEMA Class H, Solid Copper Windings, Separately Excited
BrakesDual Mechanical 7.7″ Drum, Hand Operated Parking Brake, Adjustable Motor Braking
ChargerBuilt-in, Fully Sealed, Microprocessor Controlled Smart Charger
MaterialSteel
Drive TrainHeavy Duty Motor to Helical Gears in Oil Bath
Horsepower (kW)15.3
Manufacturers Part NumberY1-01-78
BrandColumbia Vehicle Group
TypePayloader HD 4 Wheel Two Passenger 48V Burden Carrier
Gear SelectionDash Mounted Safety Directional Switch
ColorYellow
Wheel TypeSteel Rim, 5.7″ x 8″ Pneumatic, 8-ply Rating, Load Range D Tires
TransaxleAutomotive Style, Helical Gears in Oil Bath, Direct to Motor
SteeringAutomotive Wheel to Heavy-Duty Worm and Roller Gear
Batteries(8) 6V Heavy-Duty

Warranty

Warranty1 yr
