Description
Component | Positioner Pad |
Capacity | 15-30 lbs. |
Height | 1 11/16″ |
Top Height | 3/8″ |
Depth | 1 1/4″ |
Diameter | 1 9/16″ |
Flange Diameter | 1 27/32″ |
Working Orientation | Pad Up |
Material | |
Pad | Polyurethane Rubber |
Housing | Galvanized Steel |
Mount Type | Press Fit |
Air Pressure | 50 psi |
For Inlet Tube ID | 1/16″ |
Air Inlet Connection | |
Type | Barbed |
Material | Brass |

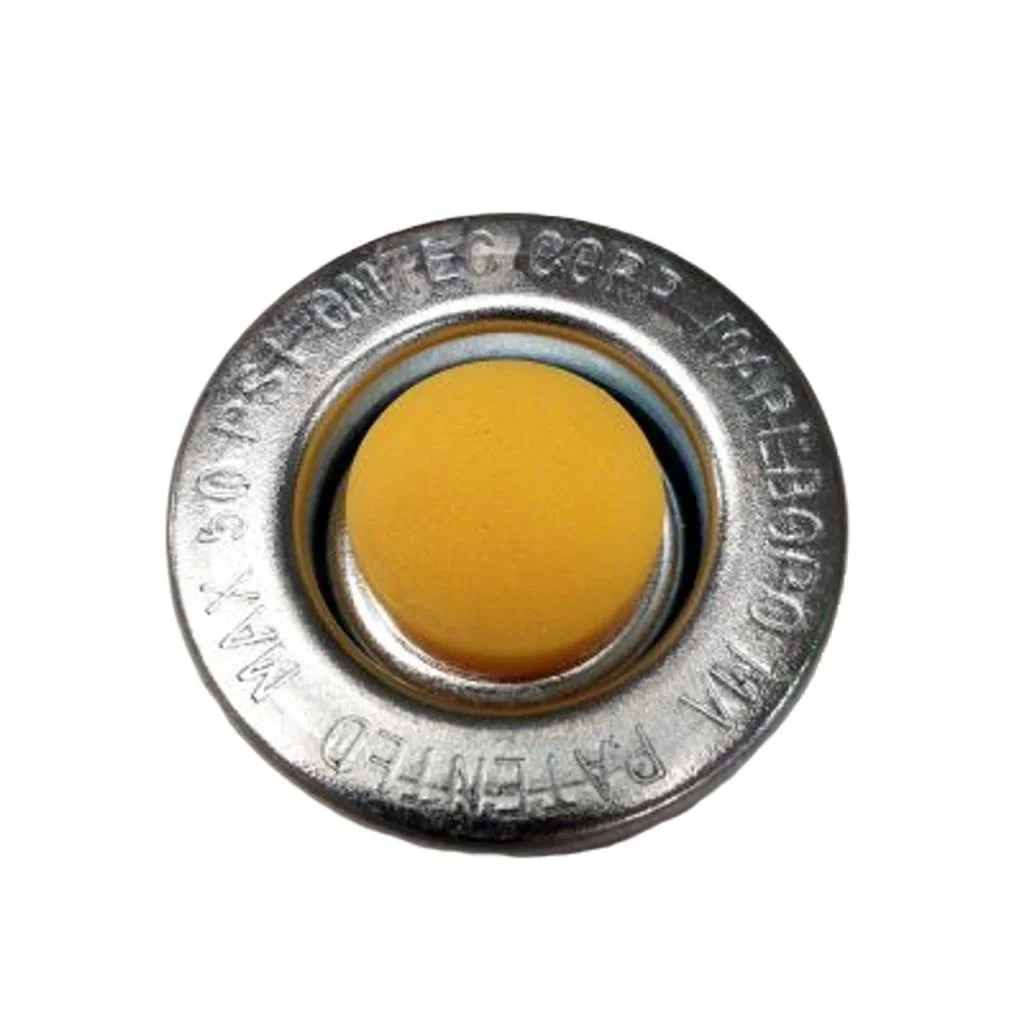

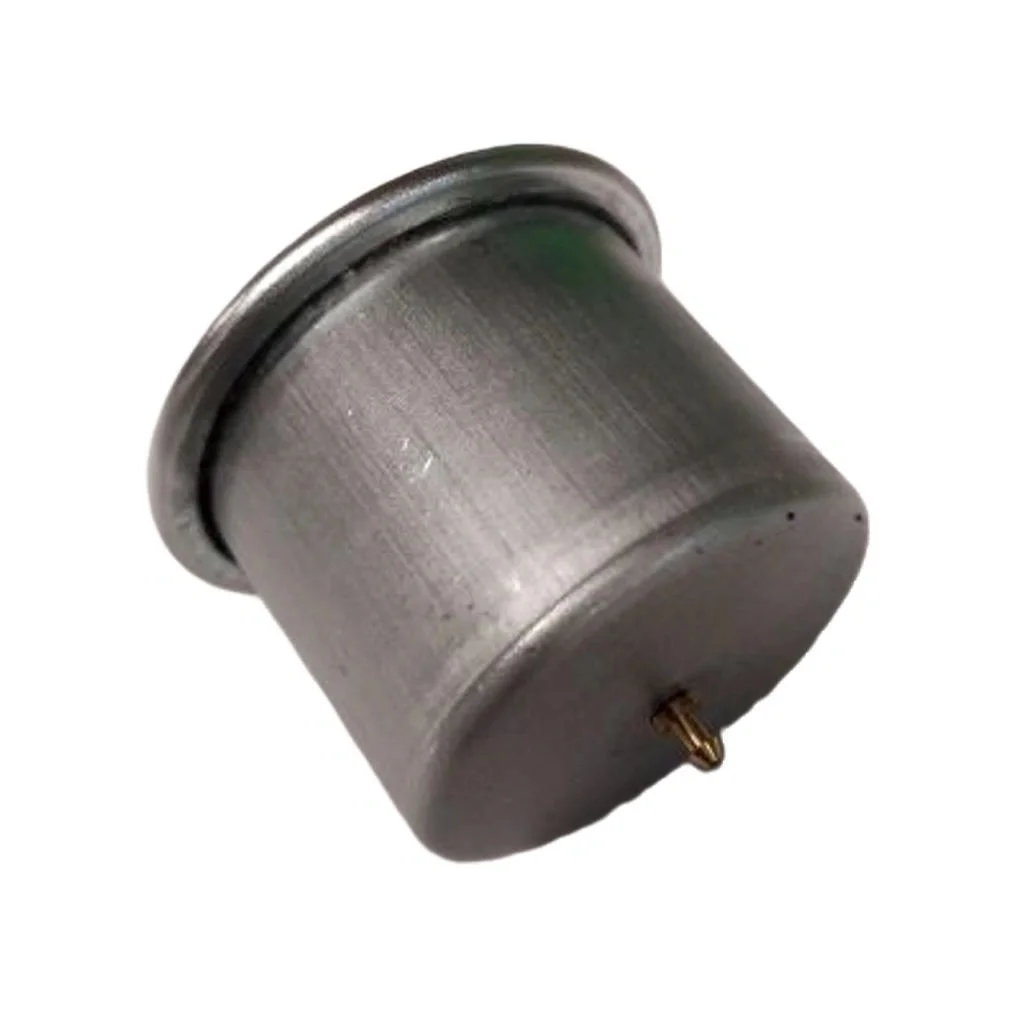

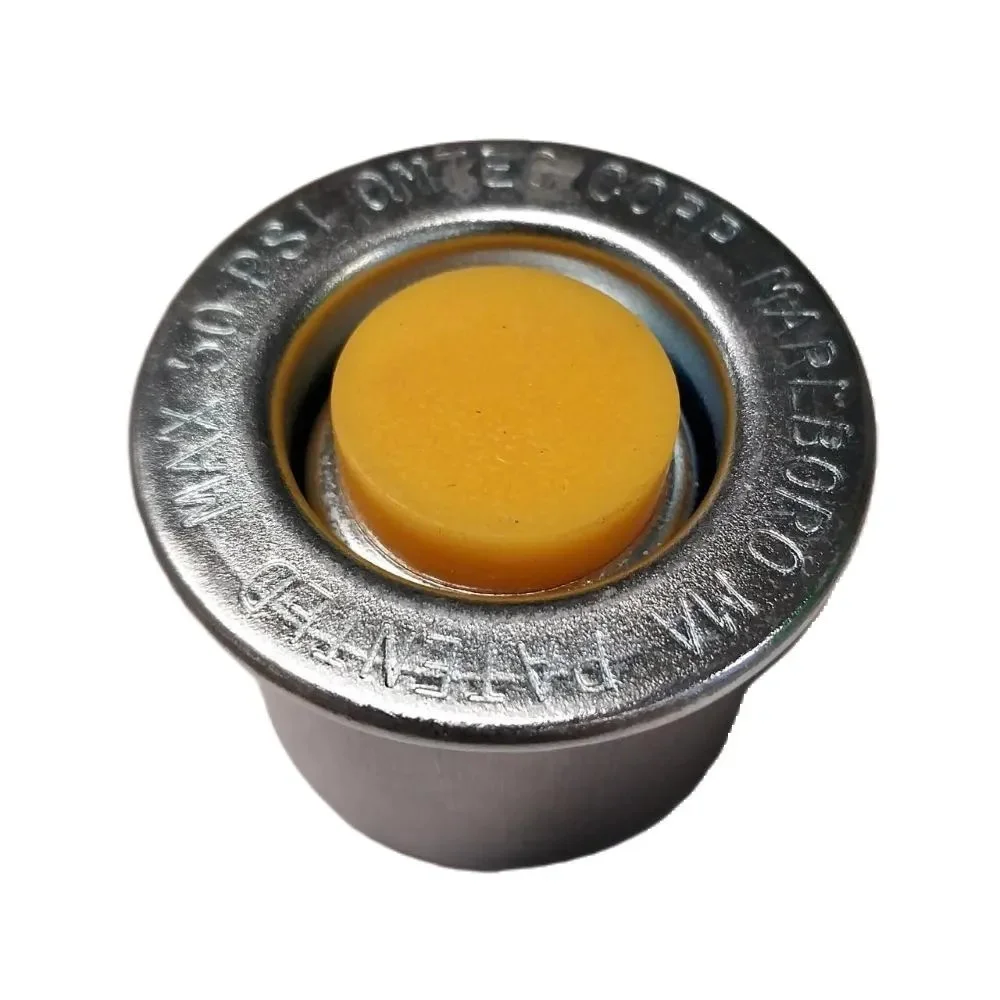

Introducing Omtec Corp PPD-1 Pneumatic Pop Up Positioner Pad: Precision in Material Handling
Enhance your material handling operations with the Omtec Corp PPD-1 Pneumatic Pop Up Positioner Pad, engineered to provide unparalleled precision, efficiency, and versatility in industrial environments. Designed with advanced pneumatic technology, this positioner pad offers dynamic control for accurate positioning of workpieces, ensuring seamless workflow optimization.
Key Features:
- Dynamic Positioning: The PPD-1 Positioner Pad features innovative pneumatic technology that allows for dynamic positioning of workpieces with pinpoint accuracy. Activate the pneumatic system, and the positioner pad adjusts effortlessly to securely hold and align materials, improving overall workflow efficiency.
- Versatile Application: From assembly lines to machining centers, the PPD-1 Positioner Pad offers versatile solutions for a wide range of material handling applications. Its adjustable design and precise positioning capabilities make it suitable for various industries and tasks, including welding, assembly, and inspection processes.
- Effortless Integration: Designed for seamless integration into existing material handling systems, the PPD-1 Positioner Pad can be easily mounted and connected to pneumatic controls. The user-friendly interface allows for quick setup and configuration, minimizing downtime and maximizing productivity.
- Robust Construction: Crafted from high-quality materials, including durable steel components and precision-engineered pneumatic mechanisms, the PPD-1 Positioner Pad is built to withstand the rigors of industrial environments. Its rugged construction ensures long-lasting performance and reliability, even in demanding operating conditions.
- Precise Control: With its precision-engineered pneumatic system, the PPD-1 Positioner Pad offers precise control over positioning and alignment, allowing for accurate placement of workpieces. This ensures consistency and repeatability in material handling processes, reducing errors and improving overall quality.
- Low Maintenance: Engineered for minimal maintenance requirements, the PPD-1 Positioner Pad reduces downtime and operational costs associated with upkeep. The robust construction and reliable pneumatic components require little maintenance, ensuring continuous operation and optimal performance.PPD Positioner Pads – Omtec Corp | Ergonomic Transfers and Workstations
- Trusted Quality: Backed by Omtec Corp’s reputation for quality and innovation, the PPD-1 Pneumatic Pop Up Positioner Pad delivers reliable and consistent performance day in and day out. Rigorous testing and quality control processes ensure durability, precision, and reliability, providing peace of mind for your material handling needs.
Upgrade your material handling systems today with the Omtec Corp PPD-1 Pneumatic Pop Up Positioner Pad and experience the difference in precision and efficiency. Trust in Omtec Corp for cutting-edge solutions that optimize your operations and drive success.
Virtually any air control device may operate Omtec Pop Up Positioner Pads. In the majority of applications simple non electric foot and hand valves may be used. Sensing device operated electric solenoids valves may also be used.
Omtec Pop Up Positioners like virtually all pneumatically operated components, require Filtered, Regulated and Lubricated compressed air to operate. Omtec has FRL kits, Non-detent foot valve kits available. Other controls supplied on request. The regulator should be set at 50 PSI (3.447 bar). Omtec pop up units use very low air volume, it is usually not a consideration. Each up and down cycle of one ball uses .00038 cubic feet .0000108 cubic meter of compressed air volume.
Carbide bits for boring and recessing holes in plastic and wood composite surfaces.
Omtec has available correct size carbide tipped bits to easily bore holes for Pop-Up Positioner pad. 1/2 inch (13mm) hand drill required.
If recessed flanges are desired, Omtec also has available the correct size carbide tipped rabbeting bits. 1/4 inch (6.35mm) trim routers.
Minimum metal surface thickness: Steel 0.092 inches (2.34mm), Aluminum 0.125 inches (3.18mm). Depending on individual applications, ribbed reinforcement of all surfaces is an important consideration.
Omtec PPD Positioner Pad capacity: 20 lbs. (9.07 kg) each.
The following factors need to be considered…
- Weight (is it evenly distributed?)
- Foot Print (bottom size)
- Item bottom characteristics, hard, solid, flat and smooth?
- Are the pads likely to indent the bottom surface?
Designed to raise under an item firmly holding it in location, not as stops, using as conveyor, stops will destroy them.
Omtec PBT ball transfers… are designed to use in combination all of the other Omtec Ergonomic Tranfers
They are ideal with Omtec: PPD Positioner Pads, FBT Ball Transfers, Insert Wheels, Insert Rollers and the ESD PUG Grounding Device
Goes good with PBT-1 Omtec Corp Pbt-1 Pneumatic Pop-Up Ball Transfers Unit (atautoconveyor.com)
