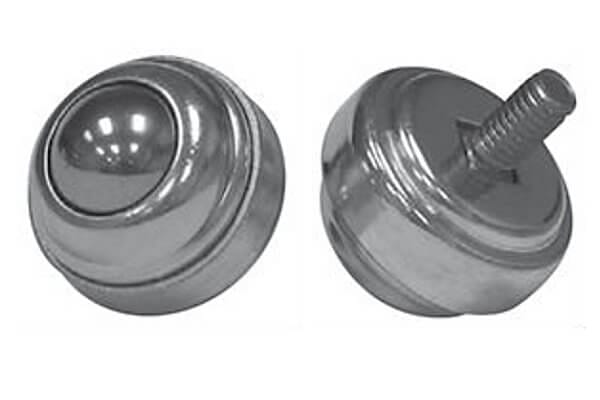

Stud Mount Ball Transfer Units
Product successfully added to the Quote List
Free shipping on orders over $75
- No-Risk Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
Description
SM & NSM
These units are steel ball transfer units with your choice of stud sizes. Sealed and lubricated to prevent less entry of foreign material and increase the life of the unit. The SMS unit in all stainless steel is perfect for food processing plants and corrosive environments. For non-marking applications the nylon ball units are ideal. These medium duty units can be utilized ball up or ball down.
*No foam seal or lubrication in stainless steel.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| SMC 1/4 | Carbon Steel | Carbon Steel (zinc plated) | 75 lbs. | 1/4-20 |
| NSMC 1/4 | Nylon | Carbon Steel (zinc plated) | 75 lbs. | 1/4-20 |
| SMS 1/4* | Stainless Steel | Stainless Steel | 125 lbs. | 1/4-20 |
| NSMS 1/4* | Nylon | Stainless Steel | 75 lbs. | 1/4-20 |
| SMC 5/16 | Carbon Steel | Carbon Steel (zinc plated) | 75 lbs. | 5/16-18 |
| NSMC 5/16 | Nylon | Carbon Steel (zinc plated) | 75 lbs. | 5/16-18 |
| SMS 5/16* | Stainless Steel | Stainless Steel | 125 lbs. | 5/16-18 |
| NSMS 5/16* | Nylon | Stainless Steel | 75 lbs. | 5/16-18 |
| SMC 3/8 | Carbon Steel | Carbon Steel (zinc plated) | 75 lbs. | 3/8-16 |
| NSMC 3/8 | Nylon | Carbon Steel (zinc plated) | 75 lbs. | 3/8-16 |
| SMS 3/8* | Stainless Steel | Stainless Steel | 125 lbs. | 3/8-16 |
| NSMS 3/8* | Nylon | Stainless Steel | 75 lbs. | 3/8-16 |
EHSM & NEHSM
This ball transfer unit has more ball exposure for easier movement of lighter materials. This is our lightest duty stud mount unit, and is available with any configuration of carbon steel, stainless steel and nylon. Can be utilized ball up or down.
*No seal
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| EHSMC | Carbon Steel | Carbon Steel (zinc plated) | 50 lbs. | 1/4-20 |
| NEHSMC | Nylon | Carbon Steel (zinc plated) | 50 lbs. | 1/4-20 |
| EHSMS | Stainless Steel | Stainless Steel | 100 lbs. | 1/4-20 |
| NEHSMS | Nylon | Stainless Steel | 50 lbs. | 1/4-20 |
LDSM & NLDSM
This unit is available with any configuration of carbon steel, stainless steel and nylon. This is a light duty unit that can only be utilized ball up.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| LDSMC | Carbon Steel | Carbon Steel (zinc plated) | 65 lbs. | 1/4-20 |
| NLDSMC | Nylon | Carbon Steel (zinc plated) | 65 lbs. | 1/4-20 |
| LDSMS | Stainless Steel | Stainless Steel | 100 lbs. | 1/4-20 |
| NLDSMS | Nylon | Stainless Steel | 65 lbs. | 1/4-20 |
1 1/2″ SM & NSM
With a 250-pound load capacity, this heavy duty unit is available in all-carbon steel, all-stainless steel, and as a carbon or stainless housing with a nylon main ball. A 3/8-16 stud allows faster, easier installation. This unit is available with any configuration of carbon steel, stainless steel and nylon. Can be utilized ball up or ball down.
Neoprene pads available to reduce shock, vibration and noise.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 1-1/2 SMC | Carbon Steel | Carbon Steel (zinc plated) | 250 lbs. | 3/8-16 |
| 1-1/2 NSMC | Nylon | Carbon Steel (zinc plated) | 250 lbs. | 3/8-16 |
| 1-1/2 SMS | Stainless Steel | Stainless Steel | 350 lbs. | 3/8-16 |
| 1-1/2 NSMS | Nylon | Stainless Steel | 250 lbs. | 3/8-16 |
BD-R-SMC 3/8″
This ball transfer unit of carbon steel is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.
*No seal
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| BD-R-SMC 3/8 | Carbon Steel | Black Oxide Finished Carbon Steel | 150 lbs. | 3/8-16 |
1 1/8″ BD-R-SMC 3/8″
This ball transfer unit of carbon steel is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.
*No seal
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 1-1/8 BD-R-SMC 3/8 | Carbon Steel | Black Oxide Finished Carbon Steel | 200 lbs. | 3/8-16 |
1 1/4″ BD-R-SMC 3/8″
This ball transfer unit of carbon steel is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.
*No seal
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 1 1/4 BD-R-SMC 3/8 | Carbon Steel | Black Oxide Finished Carbon Steel | 250 lbs. | 3/8-16 |
5/16″ LSC & NLSC
The LSC ball transfer unit is designed with a smaller outside diameter for multiple unit installation. These medium duty units are sealed with a welded stud, and can only be utilized ball up.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| LSC 5/16 | Carbon Steel | Black Oxide Finished Carbon Steel | 65 lbs. | 5/16-18 |
| NLSC 5/16 | Nylon | Black Oxide Finished Carbon Steel | 65 lbs. | 5/16-18 |
5/16″ HSC & NHSC
The HSC ball transfer unit is designed for multiple unit installation. These heavy duty units are sealed with a welded stud, and can be utilized ball up or down or at any angle.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| HSC 5/16 | Carbon Steel | Black Oxide Finished Carbon Steel | 100 lbs. | 5/16-18 |
| NHSC 5/16 | Nylon | Black Oxide Finished Carbon Steel | 75 lbs. | 5/16-18 |
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| HSC 1/4 | Carbon Steel | Black Oxide Finished Carbon Steel | 150 lbs. | 1/4-20 |
| NHSC 1/4 | Nylon | Black Oxide Finished Carbon Steel | 75 lbs. | 1/4-20 |
1 1/4″ HSC & NHSC
These heavy duty stud mount units are constructed with stamped/drawn carbon steel housing with a welded stud. Stainless steel no available. Can be utilized ball up, down or at any angle.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 1-1/4 HSC | Carbon Steel | Black Oxide Finished Carbon Steel | 250 lbs. | 3/8-16 |
| 1-1/4 NHSC | Nylon | Black Oxide Finished Carbon Steel | 250 lbs. | 3/8-16 |
12 MSM & NMSM
A miniature ball transfer unit constructed of solid CNC machined, case hardened carbon steel with a stamped carbon steel top cover. Can be used ball up or down.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 12 MSMC | Carbon Steel | Carbon Steel (zinc plated) | 65 lbs. | 1/4-20 |
| 12 NMSMC | Nylon | Carbon Steel (zinc plated) | 65 lbs. | 1/4-20 |
| 12 MSMS | Stainless Steel | Stainless Steel | 100 lbs. | 1/4-20 |
| 12 NMSMS | Nylon | Stainless Steel | 65 lbs. | 1/4-20 |
15 MSM & NMSM
This medium duty stud mount unit is constructed of solid CNC machined, case hardened carbon steel with a stamped carbon steel top cover.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 15 MSMC | Carbon Steel | Carbon Steel (zinc plated) | 130 lbs. | 1/4-20 |
| 15 NMSMC | Nylon | Carbon Steel (zinc plated) | 130 lbs. | 1/4-20 |
| 15 MSMS | Stainless Steel | Stainless Steel | 200 lbs. | 1/4-20 |
| 15 NMSMS | Nylon | Stainless Steel | 130 lbs. | 1/4-20 |
25 MSM & NMSM
This heavy duty stud mount unit is constructed of solid CNC machined, case hardened carbon steel with a stamped carbon steel top cover. This unit utilizes an oiled felt sealing system. Can be used ball up or down.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 25 MSMC | Carbon Steel | Carbon Steel (zinc plated) | 440 lbs. | 5/16-18 |
| 25 NMSMC | Nylon | Carbon Steel (zinc plated) | 440 lbs. | 5/16-18 |
| 25 MSMS | Stainless Steel | Stainless Steel | 550 lbs. | 5/16-18 |
| 25 NMSMS | Nylon | Stainless Steel | 440 lbs. | 5/16-18 |
30 MSM & NMSM
This heavy duty stud mount unit is constructed of solid CNC machined, case hardened carbon steel with a machined carbon steel top cover. This unit utilizes an oiled felt sealing system and is easily installed with its 3/8-16 stud. Can be used ball up or down.
| Part # | Ball Material | Housing | Load Capacity | Stud Size |
|---|---|---|---|---|
| 30 MSMC | Carbon Steel | Carbon Steel (zinc plated) | 770 lbs. | 3/8-16 |
| 30 NMSMC | Nylon | Carbon Steel (zinc plated) | 770 lbs. | 3/8-16 |
| 30 MSMS | Stainless Steel | Stainless Steel | 970 lbs. | 3/8-16 |
| 30 NMSMS | Nylon | Stainless Steel | 770 lbs. | 3/8-16 |
