Description
Component | ESD PUG |
Capacity | 15-30 lbs. |
Height | 1 5/8″ |
Top Height | 3/8″ |
Depth | 1 1/4″ |
Diameter | 1 9/16″ |
Flange Diameter | 1 27/32″ |
Material | Brass Tip |
Housing | Galvanized Steel |
Mount Type | Press Fit |
Air Pressure | 50 psi |
For Inlet Tube ID | 1/16″ |
Air Inlet Connection | |
Type | Barbed |
Material | Brass |
Introducing Omtec Corp Pneumatic Pop Up Brass Electro-Static Discharge Ground Units: Superior Safety and Efficiency in Material Handling
Elevate your material handling operations to new heights of safety and efficiency with the Omtec Corp Pneumatic Pop Up Brass Electro-Static Discharge (ESD) Ground Units. Meticulously engineered for reliability and precision, these ground units offer advanced electro-static discharge protection alongside seamless integration and exceptional performance in industrial environments.
Key Features:
- ESD Protection Technology: Featuring advanced electro-static discharge protection technology, the Omtec Corp Pneumatic Pop Up Brass ESD Ground Units provide a safe and secure solution for handling sensitive electronic components and materials. Safeguard against electro-static discharge, ensuring the integrity of delicate components and minimizing the risk of costly damage.
- Durable Brass Construction: Crafted from high-quality brass, these ground units are engineered to endure the demands of heavy-duty industrial applications. The brass construction offers superior durability, corrosion resistance, and longevity, ensuring reliable performance even in harsh operating conditions.
- Pneumatic Pop-Up Mechanism: Equipped with an innovative pneumatic pop-up mechanism, these ground units allow for effortless adjustment of the ground level as needed. Activate the pneumatic system, and the ground units rise smoothly to the desired height, providing a stable and level surface for material handling tasks.
- Versatile Application: From electronics manufacturing facilities to cleanrooms, these ground units offer versatile solutions for a wide range of material handling applications where electro-static discharge protection is paramount. Seamlessly integrate them into conveyor systems, assembly lines, and workstations to enhance efficiency and productivity.
- Efficient Material Handling: With their precision-engineered design, these ground units facilitate smooth and frictionless movement of materials across surfaces. This feature ensures optimal load positioning and stability, minimizing the risk of damage to both the load and the equipment.
- Easy Installation and Integration: Designed for hassle-free installation and integration, the Omtec Corp Pneumatic Pop Up Brass ESD Ground Units can be easily mounted and connected to pneumatic controls. The user-friendly interface allows for quick setup and configuration, minimizing downtime and maximizing productivity.
- Trusted Quality: Backed by Omtec Corp’s commitment to quality and innovation, these ground units deliver reliable and consistent performance day in and day out. Rigorous testing and quality control processes ensure durability, precision, and reliability, providing peace of mind for your material handling needs.
Upgrade your material handling systems today with the Omtec Corp Pneumatic Pop Up Brass Electro-Static Discharge Ground Units and experience the difference in safety, efficiency, and reliability. Trust in Omtec Corp for cutting-edge solutions that optimize your operations and drive success in ESD-sensitive environments.
Prevent static build-up and protect sensitive electronic components with Omtec Corp PUGs for Electrostatic Discharge Units on your Conveyor System! These units are designed to effectively discharge static electricity, ensuring the safe and efficient handling of sensitive electronic components. The PUGs feature a compact design that easily integrates into your conveyor system, providing reliable and effective electrostatic discharge protection. Whether you’re in a high-tech manufacturing facility, or any other industry that handles sensitive electronic components, Omtec Corp PUGs are the perfect solution for your electrostatic

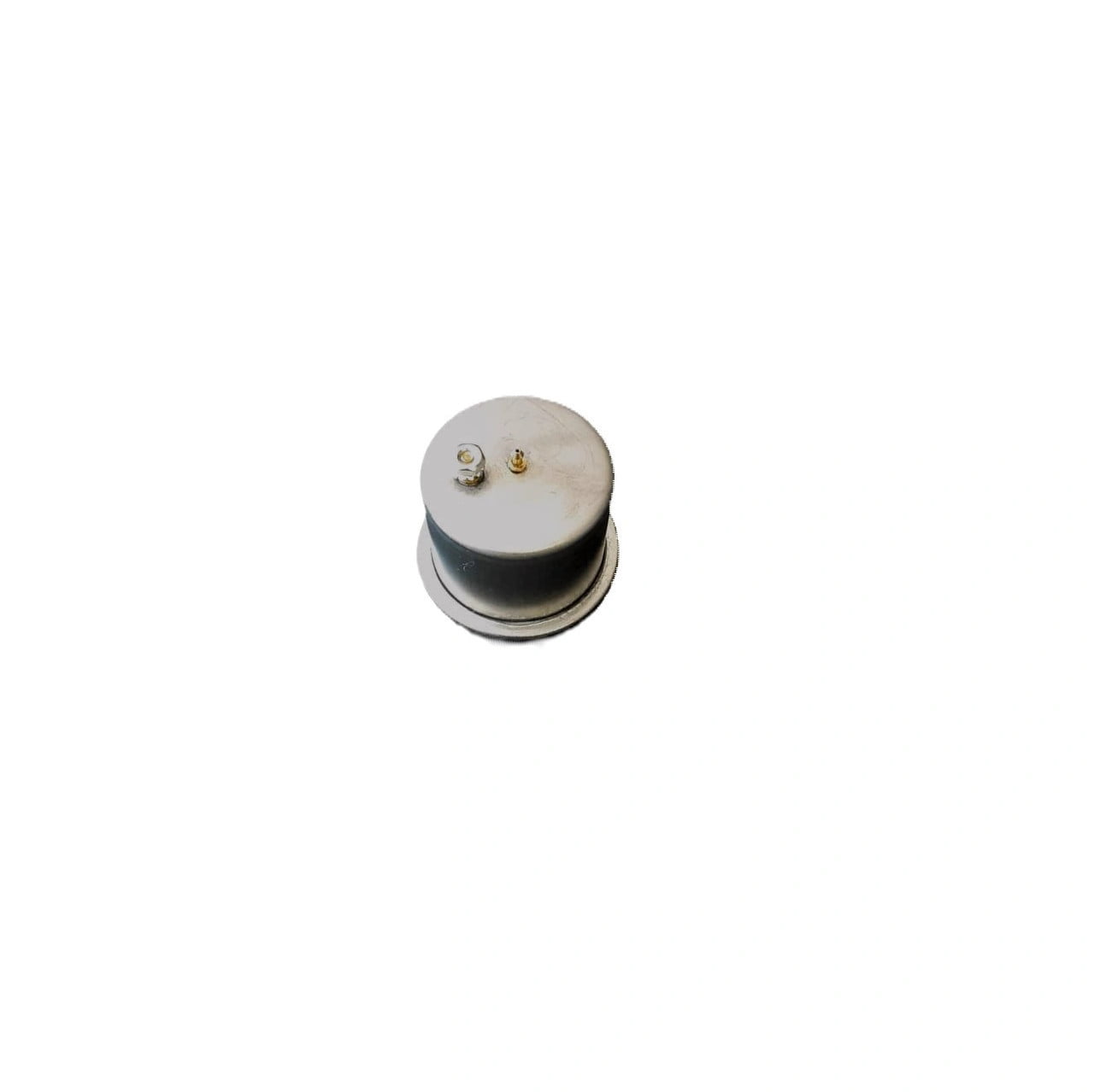

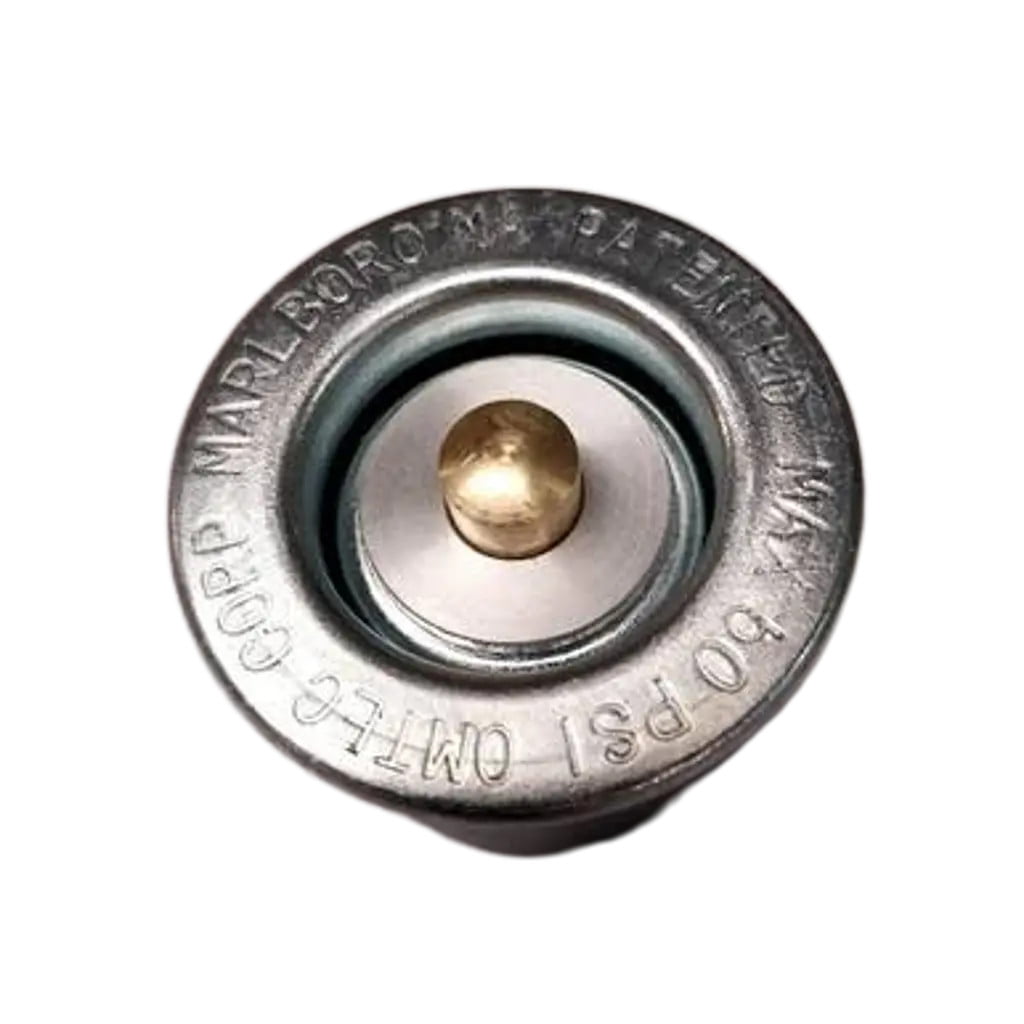

OMTECs patented PUGs are designed for an easy solution to almost any ESD application. These simple yet effective units are placed in work surfaces that were not originally designed for ESD applications. The bottom if the unit has a threaded stud so it can be grounded. The top of the unit has a spring loaded brass pin that stays in contact with your product grounding it at all times even when the unit is retracted. When the units raised the brass pin retracts under little pressure but still remains in contact always grounding your ESD product.
Omtec Pop Up Ball Transfers like virtually all pneumatically operated components, require Filtered, Regulated and Lubricated compressed air to operate. Omtec has FRL kits, Non-detent foot valve kits and detent toggle hand valve kits available. Other controls supplied on request. The regulator should be set at 50 PSI (3.447 bar). Omtec pop up ball transfer units use very low air volume, it is usually not a consideration. Each up and down cycle of one ball uses .00038 cubic feet (.0000108 cubic meter).
Many factors override the actual rated capacity of a ball transfer. Experience indicates when all factors are considered, the most successful live load rates of ball transfers falls between 5 to 30 lbs. (2.27 to 13.61 kg) per ball transfer. Omtec PBT ball transfers… are designed to use in combination all of the other Omtec Ergonomic Tranfers.
They are ideal with Omtec: PPD Positioner Pads, F1 Ball Transfers, Insert Wheels, andInsert Rollers.
Check out our kit PBT Table kit with plumbing and valves
