Flange Mount Ball Transfer Units

Flange Mount Ball Transfer Units

Categories: , ,

Free shipping on orders over $75

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
Guaranteed Safe Checkout

Description

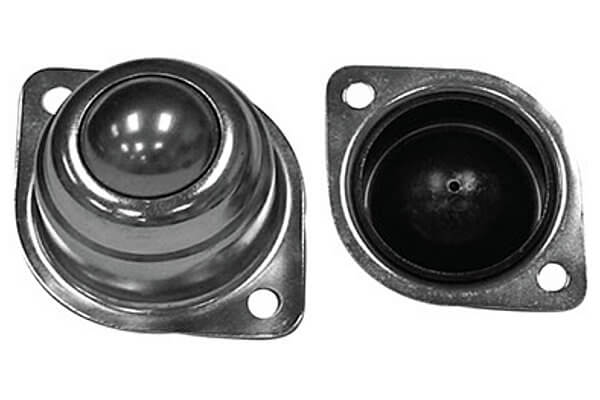

FMC & FMS

This unit has a two-hole flange base for easy mounting. Hardened ball cup and sealed protective cover permit low torque and long life. This unit can be utilized ball up or ball down.

Units are available with any configuration of carbon steel, stainless steel and nylon.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
FMCCarbon SteelCarbon Steel (zinc plated)75 lbs.
NFMCNylonCarbon Steel (zinc plated)75 lbs.
FMSStainless SteelStainless Steel125 lbs.
NFMSNylonStainless Steel75 lbs.
11/16" OB-FMC Flange Mount Caster

11/16″ OB-FMC

This unit has a two-hole flange base for easy mounting. This unit can be utilized ball up, ball down or at any angle, unless noted.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
11/16 OB-FMCCarbon SteelBlack Oxide Finished Carbon Steel90 lbs.
OB-FMC Flange Ball Transfer Unit

OB-FMC

This unit has a two-hole flange base for easy mounting. This unit can be utilized ball up, ball down or at any angle, unless noted.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
OB-FMCCarbon SteelBlack Oxide Finished Carbon Steel135 lbs.
BD-R-FMC Flange Ball Transfer Unit

BD-R-FMC

This ball transfer unit of carbon steel component is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
OB-FMCCarbon SteelBlack Oxide Finished Carbon Steel135 lbs.
1 1/8" BD-R-FMC Flange Mount Caster

1 1/8″ BD-R-FMC

This ball transfer unit of carbon steel component is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
1 1/8 BD-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel180 lbs.
1 1/4" BD-R-FMC Flange Ball Transfer Unit

1 1/4″ BD-R-FMC

This ball transfer unit of carbon steel component is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
1 1/4 BD-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel225 lbs.
1 1/2" EFMC & EFMS Flange Ball Transfer Unit

1 1/2″ EFMC & EFMS

With a 250-pound load capacity, this heavy duty unit is available in all-carbon steel, all-stainless steel, and as a carbon or stainless housing with a nylon main ball. It has a four-hole flange to facilitate easy installation. Can be utilized ball up or ball down.

Neoprene pads available to reduce shock, vibration and noise.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
1-1/2 EFMCCarbon SteelCarbon Steel (zinc plated)250 lbs.
1-1/2 NEFMCNylonCarbon Steel (zinc plated)250 lbs.
1-1/2 EFMSStainless SteelStainless Steel350 lbs.
1-1/2 NEFMSNylonStainless Steel250 lbs.
1 1/2" FMC & FMS Flange Ball Transfer Unit

1 1/2″ FMC & FMS

This heavy duty unit has a four-hole flange to facilitate easy installation. The nylon seal prevents entry of dirt and foreign matter while removable armored protective cover provides ultimate protection against damage. This unit can be utilized ball up only.

Neoprene pads available to reduce shock, vibration and noise.

View Product Diagram

Part #Ball MaterialHousingLoad Capacity
1-1/2 FMCCarbon SteelCarbon Steel (zinc plated)250 lbs.
1-1/2 NFMCNylonCarbon Steel (zinc plated)250 lbs.
1-1/2 FMSStainless SteelStainless Steel350 lbs.
1-1/2 NFMSNylonStainless Steel250 lbs.
