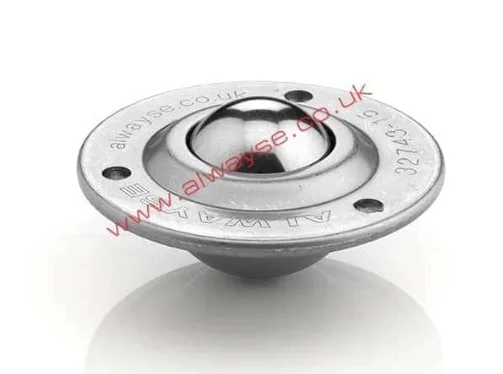

Alwayse Ball Transfer Unit Flange Fixing Unit 32743
General purpose pressed steel unit with a low profile and multiple dirt exit holes.
No seal as standard
| SPECIFICATION | 3274313 | 3274314 | 3274315 | 3274316 |
|---|---|---|---|---|
| Load Ball Diameter (mm) | 31.7 | 31.7 | 31.7 | 31.7 |
| Fixing Method | Flange | Flange | Flange | Flange |
| Max Load (Ball Up) (kg) | 125 | 25 | 125 | 125 |
| Max Load (Ball Down) (kg) | 55 | 10 | 55 | 55 |
| Load Ball Material | Carbon Chrome | Nylon | Stainless Steel | Stainless Steel |
| Support Ball Material | Carbon Chrome | Stainless Steel | Stainless Steel | Stainless Steel |
| Unit Housing Finish | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| Product Weight (kg) | 0.27 | 0.27 | 0.27 | 0.27 |

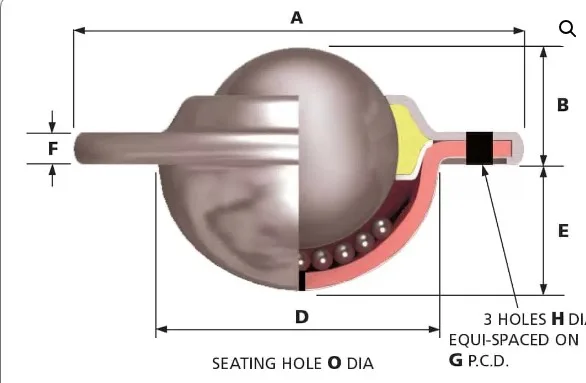

| Dim. A – Max Diameter (mm) | 73.7 | 73.7 | 73.7 | 73.7 |
| Dim. B – Working ht. of Ball (mm) | 16.2+/- 0.3 | 16.2+/- 0.3 | 16.2+/- 0.3 | 16.2+/- 0.3 |
| Dim. D – Body Diameter (mm) | 45.5 | 45.5 | 45.5 | 45.5 |
| Dim. E – Under Flange to Base (mm) | 19.9 | 19.9 | 19.9 | 19.9 |
| Dim. F – Flange Thickness (mm) | 4.2 | 4.2 | 4.2 | 4.2 |
| Dim. G – Fixing Holes PCD (mm) | 58.7 +/- 0.2 | 58.7 +/- 0.2 | 58.7 +/- 0.2 | 58.7 +/- 0.2 |
| Dim. H – Fixing Hole Size (mm) | 5.1 | 5.1 | 5.1 | 5.1 |
| Dim. O – Seating Hole (mm) | 46.5 | 46.5 | 46.5 | 46.5 |
