Description

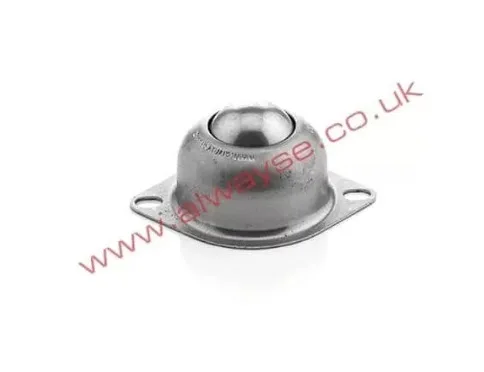

Alwayse Ball Transfer Unit Base Fixing Unit 1006

High load capacity high profile unit with 2 drill hole fixings.

Dirt exit hole and no seal standard.

SPECIFICATION 10061300 10061400 10061500 10061600
Load Ball Diameter (mm) 25.4 25.4 25.4 25.4
Fixing Method Base Base Base Base
Max Load (Ball Up) (kg) 55 25 55 55
Max Load (Ball Down) (kg) 25 10 25 25
Load Ball Material Carbon Chrome Nylon Stainless Steel Stainless Steel
Support Ball Material Carbon Chrome Stainless Steel Stainless Steel Stainless Steel
Unit Housing Finish Carbon Steel Carbon Steel Stainless Steel Carbon Steel
Product Weight (kg) 0.16 0.16 0.16 0.16

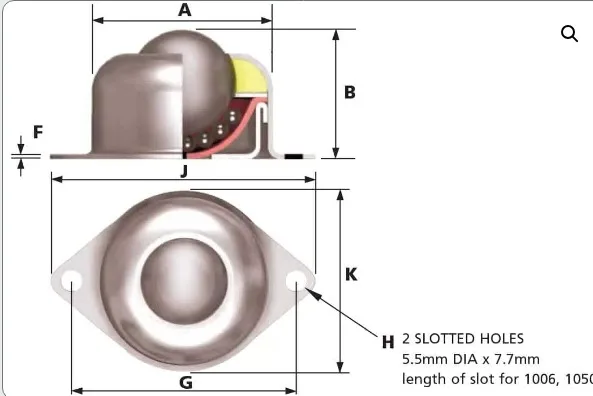

Dim. A – Max Diameter (mm) 44.5 44.5 44.5 44.5
Dim. B – Working ht. of Ball (mm) 31.5 31.5 31.5 31.5
Dim. F – Base Thickness (mm) 1 1 1 1
Dim. G – Fixing Holes PCD (mm) 60.3 / 55.9 60.3 / 55.9 60.3 / 55.9 60.3 / 55.9
Dim. H – Fixing Hole Size (mm) 7.7 / 5.5 7.7 / 5.5 7.7 / 5.5 7.7 / 5.5
Dim. J – Major Flange Size (mm) 69 69 69 69
Dim. K – Minor Flange Size (mm) 51 51 51 51
