Description

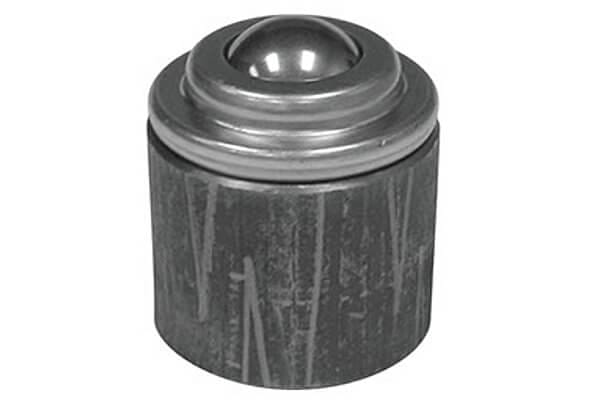

1 1/2″ PMC & PMS
This standard 2 inch NPT pipe mount ball transfer unit provides support without hindering the operator’s movements. When this unit is used in front of shears or press brakes it provides more accurate positioning than casters. Hardened ball and cup provide durability. Also available with a nylon main ball to prevent material marking.
*No foam seal or lubrication in stainless steel.
Part # | Ball Material | Housing | Load Capacity |
---|---|---|---|
1-1/2 PMC | Carbon Steel | Carbon Steel (zinc plated) | 250 lbs. |
1-1/2 NPMC | Nylon | Carbon Steel (zinc plated) | 175 lbs. |
1-1/2 PMS* | Stainless Steel | Stainless Steel | 350 lbs. |
1-1/2 NPMS* | Nylon | Stainless Steel | 175 lbs. |

45 MPC-PMC
Standard 2” pipe with press mount ball transfer unit. Constructed of solid CNC machined carbon steel. When used in front of shears or press brakes, this unit provides more accurate positioning than casters. The oiled felt system keeps the ball lubricated and the self-cleaning hole allows dirt and debris to pass through. Available with a nylon main ball to prevent material marking.
Part # | Ball Material | Housing | Load Capacity |
---|---|---|---|
45 MPC-PMC | Carbon Steel | Carbon Steel (zinc plated) | 1325 lbs. |
45 NMPC-PMC | Nylon | Carbon Steel (zinc plated) | 1325 lbs. |
