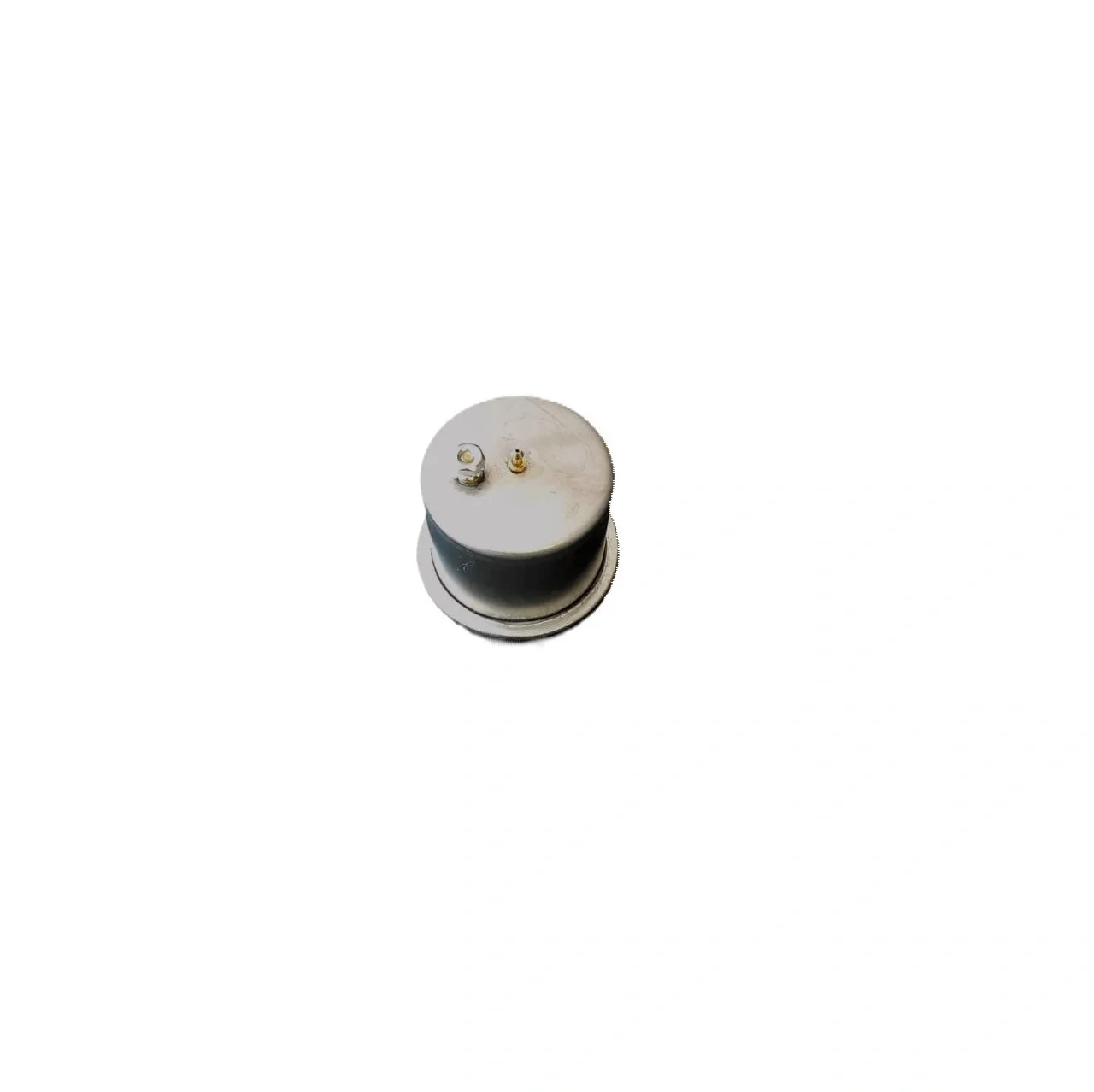

Omtec Corp PBT-1 Pop Up Ball Transfer Unit

Name: Omtec Corp PBT-1 Pop Up Ball Transfer Unit
SKU: 4401
Availability: InStock

$22.95 – $25.95

Different Meterial CS SS Delrin or ESD Available!

Get a Free Sample! Click the Link! PBT-1 –

Ball Type

Clear

Product successfully added to the Quote List

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

SKU: N/A Categories: Assembly Products, Ball Transfer Units, Ball transfers, Ergonomic Transfers Products, Omtec Corp, Shop All Tags: ball casters, Ball Conveyor, Ball transfer units, ball transfers, Bearings, Pneumatic, Pop Up Ball Transfers, Roller Bearings, Transfer Parts

Free shipping on orders over $75

No-Risk Money Back Guarantee!
No Hassle Refunds
Secure Payments

Guaranteed Safe Checkout

Description

Omtec Corp PBT-1 Pop Up Ball Transfer Unit

Omtec Corp’s PBT-1 Pop-Up Ball Transfer simplifies material handling by making it easy to transfer heavy loads. This equipment features a ball bearing mounted in a sturdy steel housing, which allows smooth, omni-directional movement. Additionally, it is built to handle loads of up to 50 lbs each, making it a reliable choice for various applications.

The Omtec Corp PBT-1 Pop Up Ball Transfer Unit works well in industrial and commercial settings, such as packaging areas, assembly lines, and shipping or receiving departments. You can install it easily on flat surfaces, which adds to its versatility. Furthermore, its steel construction ensures durability and resistance to wear, even with regular use.

To create a complete material handling system, combine the PBT-1 with other equipment. For example, it integrates seamlessly with conveyors and pallet jacks. As a result, it enhances efficiency and flexibility in a variety of workflows.

Omtec Corp PBT-1 Specifications

Component	Ball Transfer
Capacity	15-50 lbs.
Height	1 5/8″
Top Height	3/8″
Depth	1 1/4″
Diameter	1 9/16″
Ball Diameter	1″
Flange Diameter	1 27/32″
Working Orientation	Ball Up
Material
Ball	Carbon Steel, Stainless Steel Nylon DelrinElectro Static Discharge Available
Housing	Galvanized Steel
Mount Type	Press Fit
Air Pressure	50 psi
For Inlet Tube ID	1/16″
Air Inlet Connection
Type	Barbed
Material	Brass

PBT-1 Operation

Omtec Corp’s PBT-1 Pop-Up Ball Transfer Units rely on filtered, regulated, and lubricated compressed air for proper operation, like most pneumatic components. To meet these needs, Omtec provides FRL kits, non-detent foot valve kits, and detent toggle hand valve kits. Additionally, they can supply other control devices upon request. For optimal performance, you should set the regulator at 50 PSI (3.447 bar).

Omtec pop-up ball transfer units use extremely low air volume, making air consumption rarely a concern. For example, each up-and-down cycle of one ball only uses 0.00038 cubic feet (0.0000108 cubic meters) of air. Moreover, almost any air control device can operate these units. In most cases, simple non-electric foot and hand valves are sufficient, though electric solenoid controls can be used when paired with sensing devices.

The PBT-1 features precise dimensions designed for versatility. The ball has a diameter of 1 inch, while the can’s diameter is 1.562 inches. The flange diameter measures 1.850 inches. These dimensions make the PBT-1 suitable for a wide range of applications. When your project requires reliable and efficient ball transfers, choose Omtec for trusted performance and quality solutions.

Check us Out on EBay

Additional information

Weight	1 lbs
Dimensions	12 × 12 × 2 in
Ball Type	Carbon Steel, Delrin Nylon, Stainless Steel, ESD
