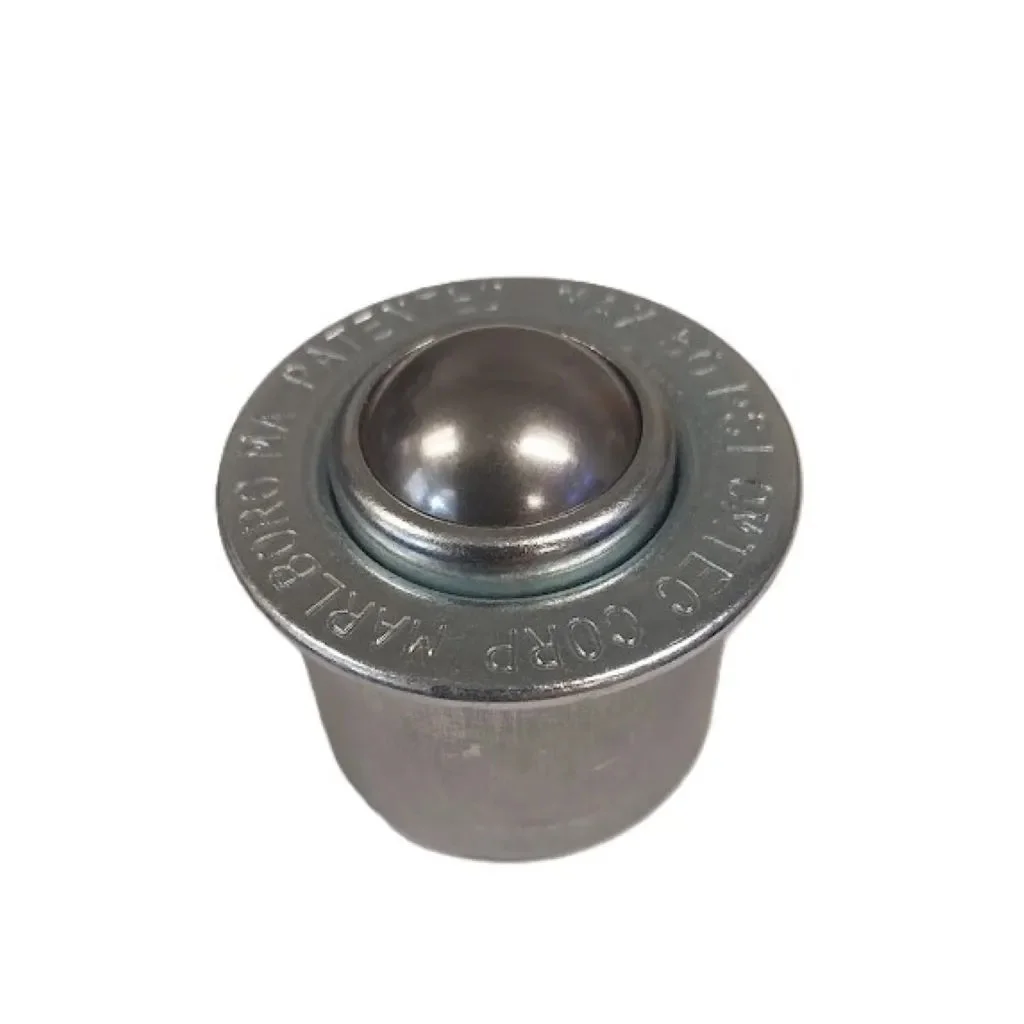

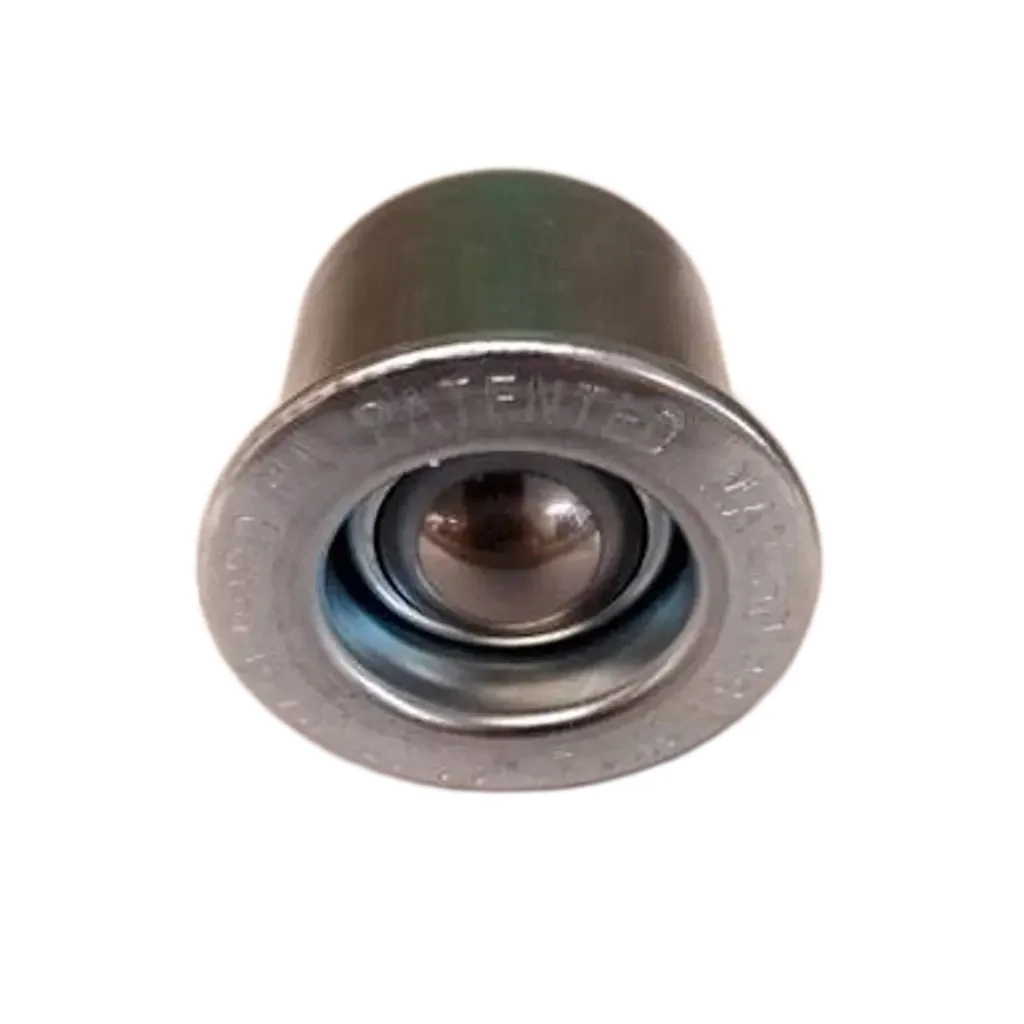

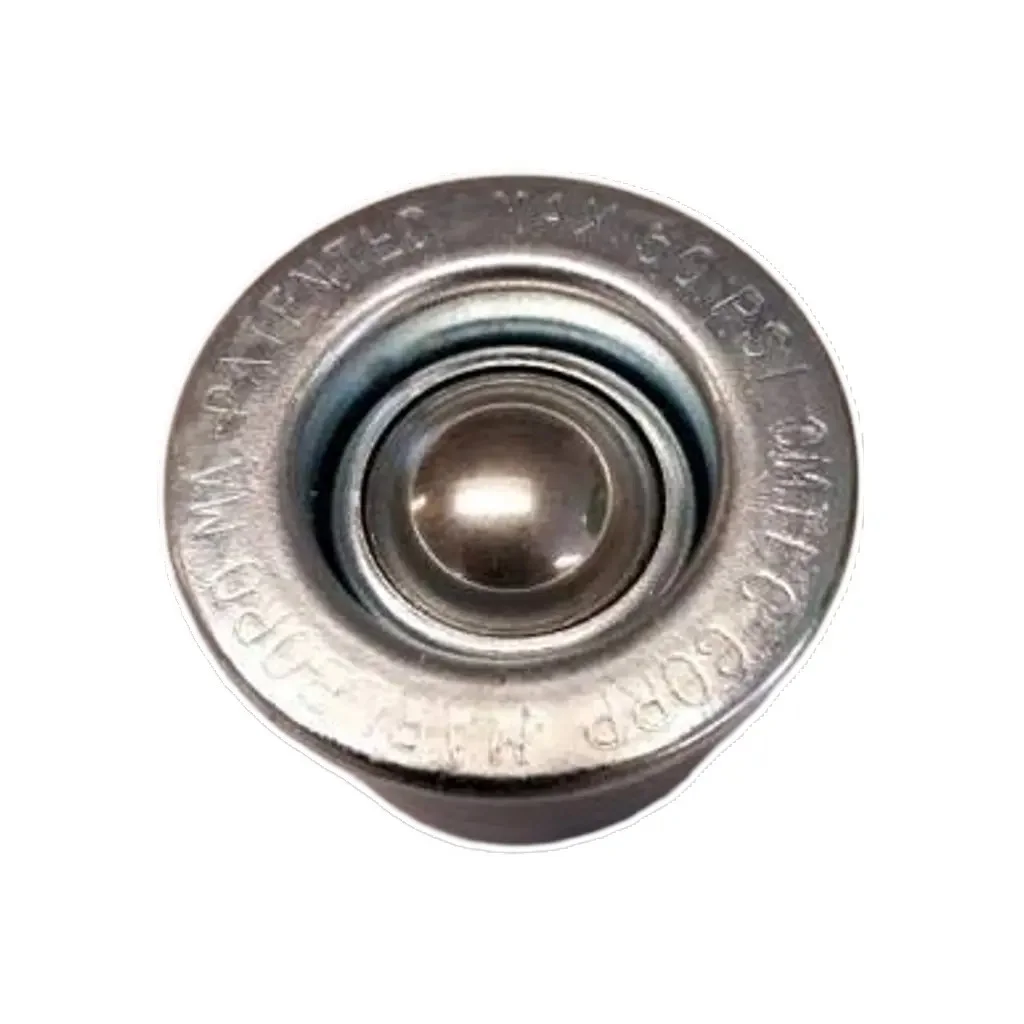

Omtec Corp PBT-1 ESD Pneumatic Ball Transfer Unit

99 in stock

SKU: PBT-1 ESD Categories: ,

Description

ComponentBall Transfer
Capacity15-30 lbs.
Height1 5/8″
Top Height3/8″
Depth1 1/4″
Diameter1 9/16″
Ball Diameter1″
Flange Diameter1 27/32″
Working OrientationBall Up
Material
BallCarbon Steel
HousingGalvanized Steel
Mount TypePress Fit
Air Pressure50 psi
For Inlet Tube ID1/16″
Air Inlet Connection
TypeBarbed
MaterialBrass
ESD



Introducing Omtec Corp PBT-1 ESD Electro-Static Discharge Pneumatic Ball Transfer Unit: Safety and Efficiency in Material Handling

Upgrade your material handling operations with the Omtec Corp PBT-1 ESD Electro-Static Discharge Pneumatic Ball Transfer Unit, meticulously engineered to offer unparalleled safety, efficiency, and reliability in industrial environments where electro-static discharge (ESD) is a concern. Designed with advanced ESD protection technology, these ball transfer units provide a secure and efficient solution for handling sensitive electronic components and materials.

Key Features:

  1. ESD Protection Technology: The PBT-1 ESD Ball Transfer Unit is equipped with advanced ESD protection technology, designed to dissipate electro-static charges safely to prevent damage to sensitive electronic components and materials. This ensures a secure and reliable material handling solution for ESD-sensitive environments.
  2. Efficient Material Handling: With precision-engineered ball bearings, these transfer units facilitate smooth and frictionless movement of materials across surfaces, enhancing workflow efficiency. The ESD protection technology ensures safe handling of electronic components, minimizing the risk of damage and costly defects.
  3. Versatile Application: From electronics manufacturing facilities to cleanrooms, the PBT-1 ESD Ball Transfer Unit offers versatile solutions for a wide range of material handling applications where ESD protection is essential. Its robust design and reliable performance make it suitable for various industries and tasks, including assembly, testing, and packaging processes.
  4. Durable Construction: Crafted from high-quality materials, including durable steel components and precision-engineered ball bearings, the PBT-1 ESD Ball Transfer Unit is built to withstand the rigors of industrial environments. Its rugged construction ensures long-lasting performance and reliability, even in demanding operating conditions.
  5. Easy Installation and Integration: Designed for seamless integration into existing material handling systems, the PBT-1 ESD Ball Transfer Unit can be easily mounted and connected to pneumatic controls. The user-friendly interface allows for quick setup and configuration, minimizing downtime and maximizing productivity.
  6. Low Maintenance: Engineered for minimal maintenance requirements, these ball transfer units reduce downtime and operational costs associated with upkeep. The robust construction and reliable ESD protection technology require little maintenance, ensuring continuous operation and optimal performance.
  7. Trusted Quality: Backed by Omtec Corp’s reputation for quality and innovation, the PBT-1 ESD Electro-Static Discharge Pneumatic Ball Transfer Unit delivers reliable and consistent performance day in and day out. Rigorous testing and quality control processes ensure durability, precision, and reliability, providing peace of mind for your material handling needs.

Upgrade your material handling systems today with the Omtec Corp PBT-1 ESD Electro-Static Discharge Pneumatic Ball Transfer Unit and experience the difference in safety, efficiency, and reliability. Trust in Omtec Corp for cutting-edge solutions that optimize your operations and drive success in ESD-sensitive environments.

Omtec Pop Up Ball Transfers like virtually all pneumatically operated components, require Filtered, Regulated and Lubricated compressed air to operate. Omtec has FRL kits, Non-detent foot valve kits and detent toggle hand valve kits available. Other controls supplied on request. The regulator should be set at 50 PSI (3.447 bar). Omtec pop up ball transfer units use very low air volume, it is usually not a consideration. Each up and down cycle of one ball uses .00038 cubic feet (.0000108 cubic meter).

Many factors override the actual rated capacity of a ball transfer. Experience indicates when all factors are considered, the most successful live load rates of ball transfers falls between 5 to 30 lbs. (2.27 to 13.61 kg) per ball transfer. Omtec PBT ball transfers… are designed to use in combination all of the other Omtec Ergonomic Tranfers.

They are ideal with Omtec: PPD Positioner Pads, F1 Ball Transfers, Insert Wheels, Insert Rollers and the ESD PUG Grounding Device

Check out our kit PBT Table kit with plumbing and valves

Additional information

Weight0.4 lbs
Dimensions12 × 12 × 2 in
