Countersunk Flange Mount Ball Transfer Units

Countersunk Flange Mount Ball Transfer Units

Categories: , ,

Free shipping on orders over $75

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
Guaranteed Safe Checkout

Description

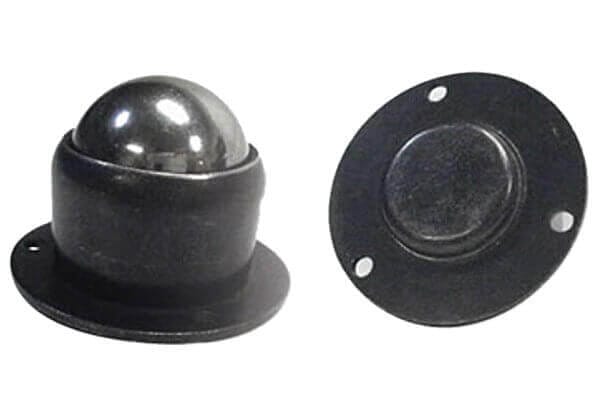

Round

This is a low profile unit and is easy to install. Unit can be utilized ball up, ball down or at any angle.

View 11/16″ CS-R-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
11/16 CS-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel90 lbs.

View CS-R-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
CS-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel135 lbs.

View 1 1/8″ CS-R-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
1 1/8 CS-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel180 lbs.

View 1 1/4″ CS-R-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
1 1/4 CS-R-FMCCarbon SteelBlack Oxide Finished Carbon Steel250 lbs.
Square Countersunk Flange Mount Ball Transfer Unit

Square

This ball transfer unit of carbon steel is intended only as a basic guide for caster or ball transfer selection. Transfers can be used ball up, ball down or at any angle. Product can be pop riveted.

View 11/16″ CS-S-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
11/16 CS-S-FMCCarbon SteelBlack Oxide Finished Carbon Steel90 lbs.

View CS-S-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
CS-S-FMCCarbon SteelBlack Oxide Finished Carbon Steel135 lbs.

View 1 1/8″ CS-S-FMC Product Diagram

Part #Ball MaterialHousingLoad Capacity
1 1/8 CS-S-FMCCarbon SteelBlack Oxide Finished Carbon Steel180 lbs.
