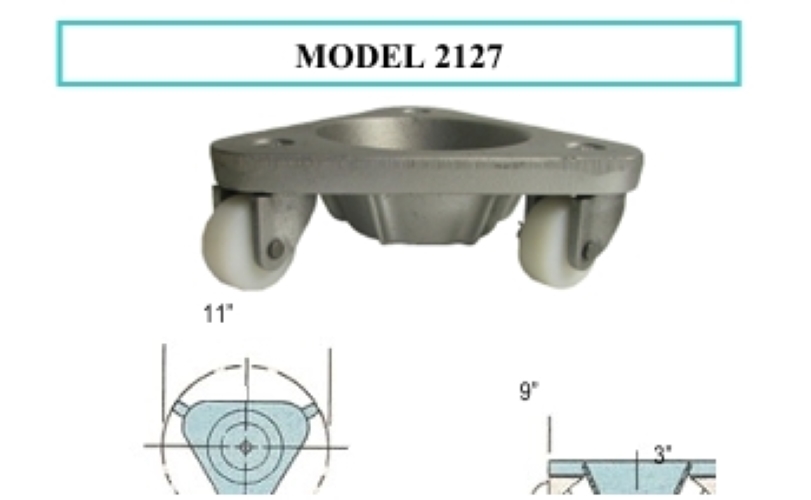

MODEL 2127
MEDIUM DUTY CUP DOLLY
CONSTRUCTION
WEIGHT: 8-1/2 lbs.
BODY: Cast semi-steel with 2” deep well, measuring 5” at the top and 3-3/16” at the bottom.
Clearance is 5/8” from the floor.
WHEELS:
Must be specified. 2” diameter wheels are chosen based on the weight carried and the environmental needs.
WHEEL MATERIAL CHOICES: Capacity (lbs.)
Hard tread, black solid rubber 375
Soft tread, black solid rubber 225
Semi-steel 450
Bondrelene – black plastic 270
TuffBond – white plastic 450
