Description

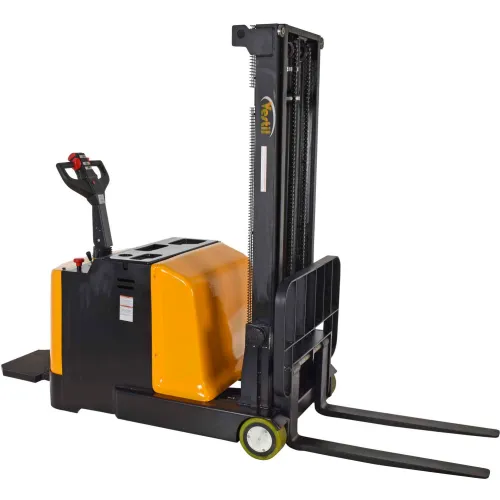

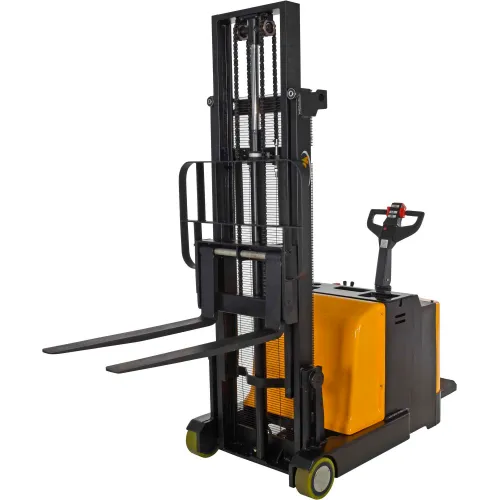

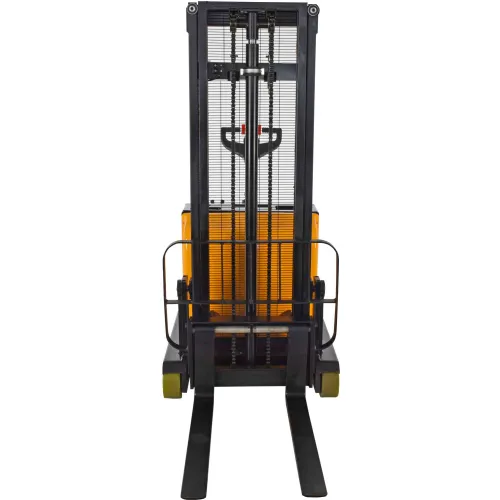

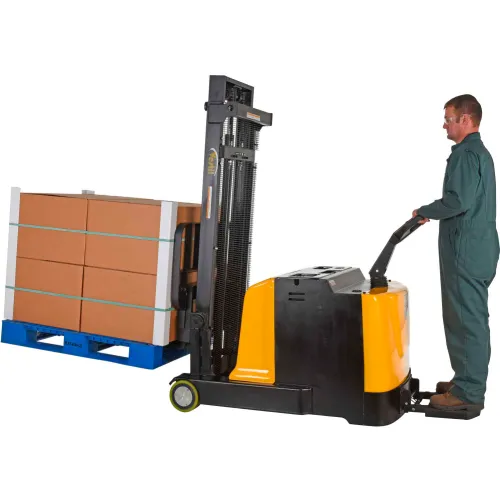

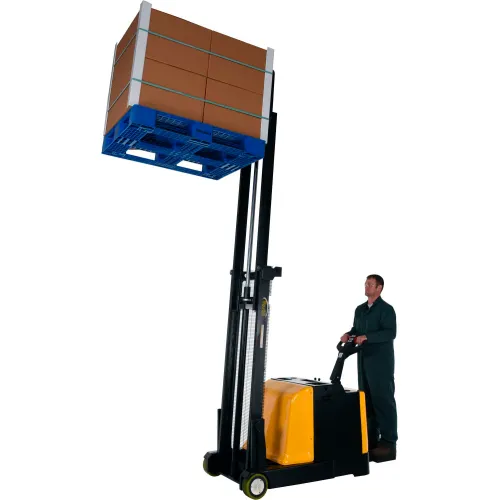

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has two lead acid deep cycle batteries, an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.Dock required for Delivery.
Weights & Dimensions
Length | 35-1/2 in |
Width | 110 in |
Height | 78 in |
Lowered Height | 2 in |
Raised Height | 118 in |
Weight Capacity | 2000 from 0″ to 62″H; 1000 from 62″ to 118″H lbs |
Weight | 2654 lbs |
Fork Length | 36-1/4 in |
Fork Width | 4 in |
Wheel Diameter | 8-1/4 Front, 9 Rear in |
Overall Fork Width | 8-3/8 to 23-1/4 (adjustable) in |
Travel Speed | 2.8 Loaded; 3.43 Unloaded mph |
Lift Speed | 20 ft/min |
Load Center | 19 in |
Turning Radius | 54 in |
Product Details
Assembly Required | No |
Charger | 13 amp / 24V |
Mast Style | Telescopic |
Material | Steel |
Lift Motor | 2.0 KW |
Manufacturers Part Number | S-2CB-118 |
Brand | Vestil |
Power | Battery Operated |
Type | Counter Balanced |
Color | Black |
Wheel Type | Polyurethane |
Duty Cycle per Charge | 3 to 4 Hours; 8 Hours Intermittent Use |
Batteries | (4) 6V / 210Ah |
Drive Motor | 0.7 KW kW |
Warranty
Warranty | 1 yr |
