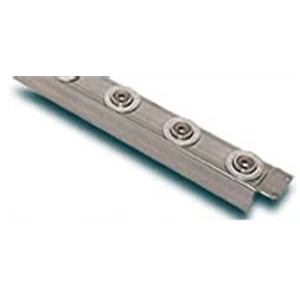

Pop Up Ball Transfer Strips

Ball Transfer Strips: Efficient and Versatile Material Handling Solutions

Omtec PBT™ Pop-Up Ball Transfer Strips are designed to optimize roller conveyor systems, providing seamless transfers and repositioning stations for various material handling applications. Whether for moving items off a conveyor or allowing them to flow uninterrupted, these Ball Transfer Strips offer unmatched flexibility and precision.

Key Features:

1. Mounting Options for Flexibility:
   • Available with end tabs for easy integration into conveyor lines.
   • Also offered without end tabs, making them ideal for custom projects and unique applications.
2. Effortless Item Transfers:
   • At the flip of a switch, Omtec PBT Ball Transfers raise above the conveyor rollers, enabling smooth and minimal-effort movement of items off the conveyor line.
3. Uninterrupted Conveyor Flow:
   • Flip the switch again, and the ball transfers retract below the rollers. This allows items that do not require transferring to continue along the conveyor line without interference.

Customizable Configurations

• Standard Spacing:
  • The first and last pop-up ball transfers are placed 1.25 inches (31.75 mm) from each end of the strip’s main body. Other transfers are evenly spaced along the strip.
• Custom Lengths and Spacing:
  • Strips can be manufactured to any desired length.
  • The number and placement of pop-up ball transfers can be adjusted to meet specific operational needs. The minimum centerline spacing is 2 inches (50.8 mm).

Pneumatic Operation for Precision and Efficiency

• Air Feed System:
  • Powered by a single 0.180 I.D. x 0.265 O.D. polyurethane tube, running under the strip between the first and last ball.
  • The standard air feed tube is 8 inches (203 mm) long but can be customized in length or placement.
• Control Options:
  • Operated using simple non-electric foot or hand valves in most applications.
  • For advanced automation, sensing devices with electric solenoid valves can be incorporated. Control kits are available for added convenience.
• Low Air Volume Requirements:
  • Each up-and-down cycle uses just 0.00038 cubic feet (0.0000108 cubic meters) of air, making it energy-efficient.

Air Quality Requirements

Like all pneumatically operated components, Ball Transfer Strips require Filtered, Regulated, and Lubricated (FRL) compressed air to ensure optimal performance and durability.

Enhance Your Conveyor System with Ball Transfer StripsOmtec PBT™ Pop-Up Ball Transfer Strips deliver reliable and efficient material handling solutions, whether for conveyor transfers or custom applications. With their modular design and versatile configurations, they are a must-have for streamlined workflows. Contact us today to learn how Ball Transfer Strips can elevate your operations!
