Hudson Bearings FLBT 1 Series

FLBT 1 Series: Durable and Versatile Ball Transfer Units

The Hudson Bearings FLBT 1 is designed for high-performance applications in manufacturing, material handling, and industrial settings. Engineered for durability and efficiency, these flange-less, all-steel ball transfers are an essential component in systems requiring smooth and reliable multi-directional movement. Whether you’re improving an assembly line, enhancing a conveyor system, or creating a custom workstation, the FLBT 1 Series delivers consistent performance and long-lasting durability.

Key Features of the Hudson Bearings FLBT 1

1. Flange-Less Design

The compact flange-less design makes the Hudson Bearings FLBT 1 ideal for applications where space is limited or where a low-profile component is required. This design allows for easy installation and seamless integration into various systems.

2. Versatile Ball and Housing Materials

The FLBT 1 Series is available in multiple material configurations to suit different operational needs:

• FLBT 1 CS:
  • Ball Material: Carbon Steel
  • Housing Material: Carbon Steel
  • Load Capacity: 75 lbs
  • Ideal for standard industrial applications requiring robust performance.
• NFLBT 1 CS:
  • Ball Material: Nylon
  • Housing Material: Carbon Steel
  • Load Capacity: 75 lbs
  • Perfect for applications requiring reduced noise levels or handling delicate items.
• FLBT 1 CS/SS:
  • Ball Material: Stainless Steel
  • Housing Material: Carbon Steel
  • Load Capacity: 75 lbs
  • Designed for environments where additional corrosion resistance is needed, such as food processing or marine industries.

3. Hardened and Plated Ball Support Cup

The ball support cup is both hardened and plated to ensure durability and reduce wear over time. This feature extends the lifespan of the unit and maintains smooth, consistent operation even under heavy use.

4. 1-Inch Main Ball with Support Balls

The 1-inch main ball rotates smoothly on 1/8-inch support balls, providing low-torque operation and effortless movement in multiple directions. This configuration allows for precise item positioning and easy material handling.

5. Protective Cover

Each unit is equipped with a protective cover to shield the internal components, ensuring longevity and maintaining low-torque performance. This design minimizes maintenance requirements and maximizes efficiency.

6. Corrosion Resistance

For operations in harsh or corrosive environments, the stainless steel configuration offers added durability and protection, making it suitable for demanding industrial applications.

Applications of the FLBT 1 Series

The Hudson Bearings FLBT 1 is designed for a wide range of industrial and commercial applications, including:

1. Material Handling Systems

Enhance conveyor systems by enabling smooth, multi-directional movement of items. These ball transfers are perfect for redirecting or repositioning items with minimal effort.

2. Assembly Lines

Streamline workflows by incorporating the FLBT 1 Series into assembly line setups. The smooth rotation and low-torque operation reduce operator fatigue and improve efficiency.

3. Workstations

Optimize ergonomic workstations with ball transfers that allow easy repositioning of materials and tools.

4. Packaging and Shipping Stations

Simplify packing and shipping processes by incorporating these units into surfaces for seamless item movement and positioning.

5. Specialized Industries

The stainless steel configuration is ideal for food processing, marine applications, and environments with exposure to moisture or chemicals, offering superior corrosion resistance.

Benefits of the FLBT 1 Series

1. Smooth and Reliable Operation

The 1-inch main ball and 1/8-inch support balls provide consistent, multi-directional movement with low torque, ensuring precision and ease of use.

2. Durability

The hardened and plated ball support cup, combined with robust housing materials, ensures long-term performance in demanding industrial environments.

3. Versatility

With multiple material configurations, the FLBT 1 Series meets the needs of various industries, from standard manufacturing to highly specialized applications.

4. Corrosion Resistance

The stainless steel ball option provides enhanced durability in corrosive environments, making it a reliable choice for harsh conditions.

5. Space-Saving Design

The flange-less construction allows for easy installation in tight spaces without compromising functionality or performance.

6. Low Maintenance

The protective cover and high-quality components reduce wear and tear, minimizing maintenance requirements and downtime.

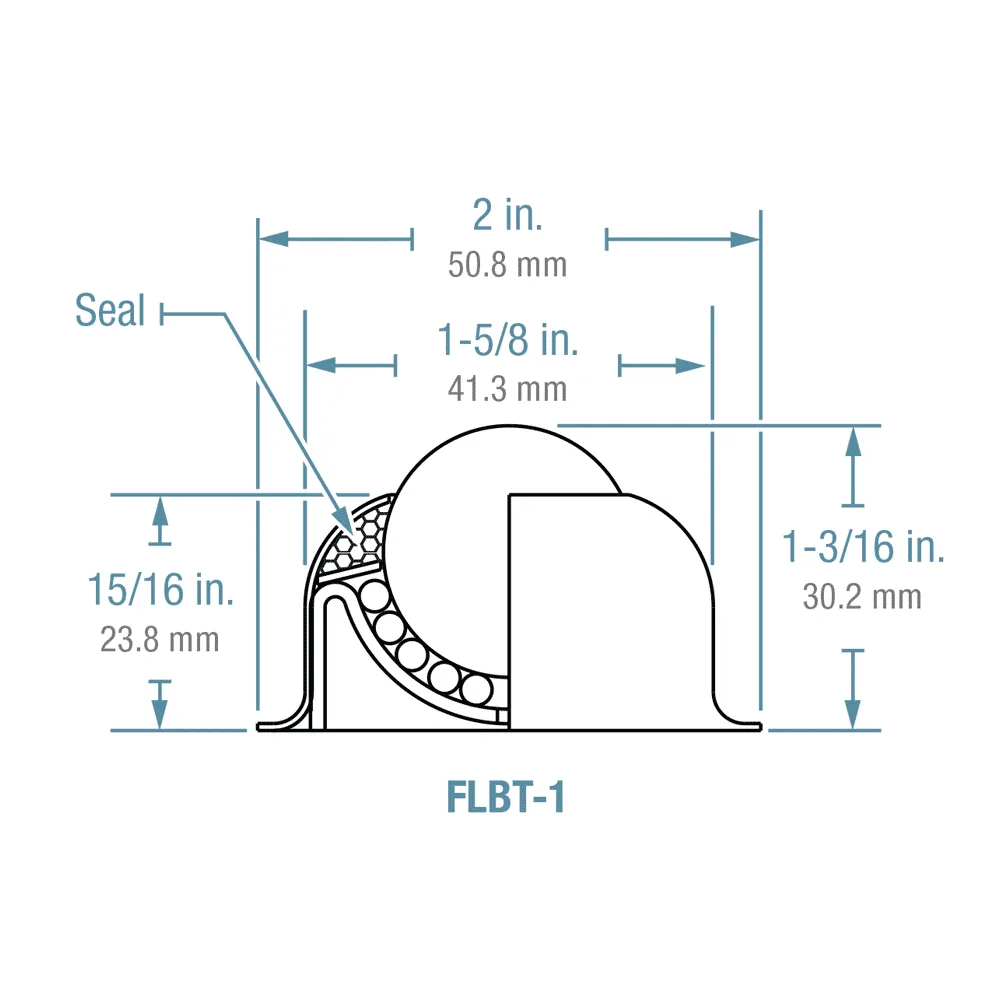

Specifications

How the FLBT 1 Series Works

1. Smooth Rotation: The 1-inch main ball glides effortlessly on the 1/8-inch support balls, enabling multi-directional movement with minimal effort.
2. Durable Support: The hardened and plated ball support cup reduces wear and ensures consistent performance under heavy loads.
3. Protective Design: The integrated cover shields internal components from debris, prolonging the unit’s lifespan and maintaining efficiency.

Why Choose the FLBT 1 Series?

The FLBT 1 Series Ball Transfer Units are engineered to meet the highest standards of performance and durability. With their flange-less design, versatile material options, and reliable load capacity, these units are a top choice for industries looking to improve material handling, workflow efficiency, and system longevity.

Key Advantages:

• High-performance ball transfer for smooth, multi-directional movement.
• Durable construction with hardened components for long-term reliability.
• Multiple material configurations to suit diverse applications.
• Protective features to minimize maintenance and maximize efficiency.

Download the FLBT 1 Series Sales Sheet

For detailed specifications, drawings, and additional product information, download the FLBT 1 Series Sales Sheet today. Let the FLBT 1 Series transform your operations with unmatched reliability and precision.

Explore the possibilities with the FLBT 1 Series—your trusted solution for industrial material handling.
